gfak #7: Hardcore Vent rev 1.5
Truncated square tiling to deal with high winds Characteristics Name gfak #7 Plan GFAK Revo 1.5 WingSpan 94" - 238 cm Model UT (Ultra Vented) Vent 58 % Fabric PC-31 Icarex polyester Colors Black Build date 1/16/2026 Frame Spars Reference Length Top Skylon Edge 300 31" Verticals Skylon Edge 300 31" Wind Range mph km/h knots Min 21,7 35 18,9 Max 31,1 50 27

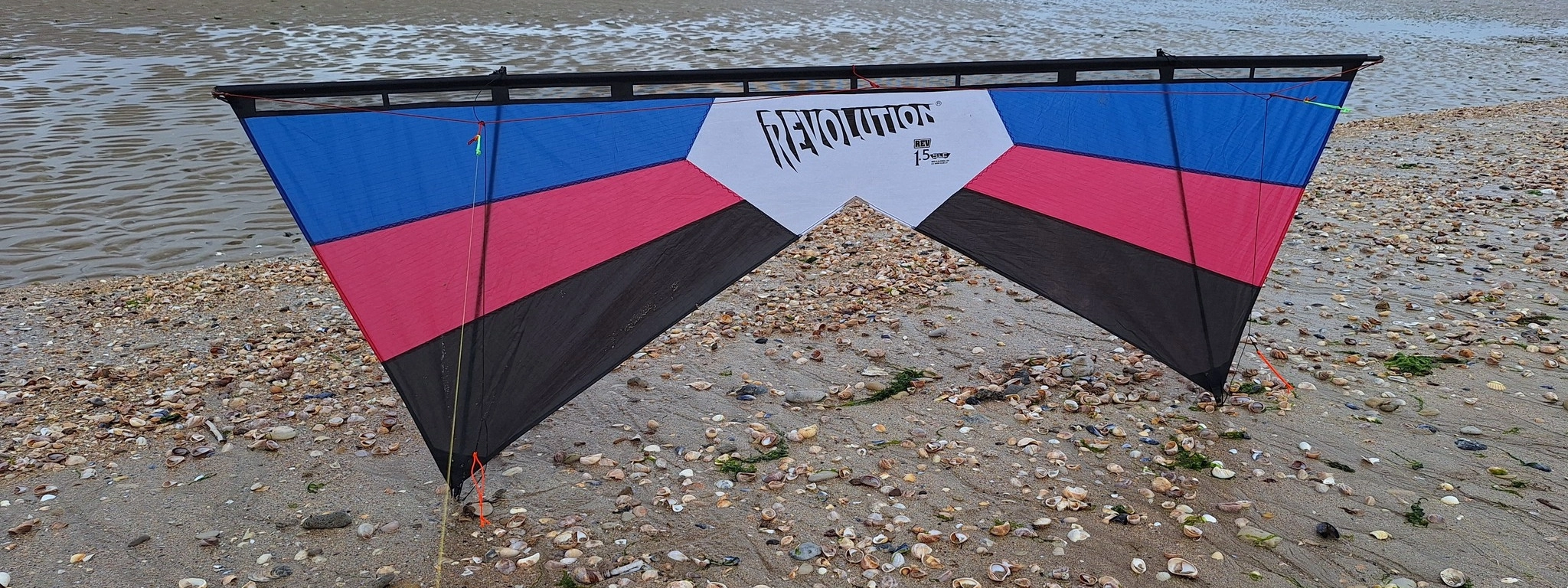

revolution SLE
Bought to test SLE –> Super Leading Edge Characteristics Name SLE Plan Revolution Revo 1.5 WingSpan 94" - 238 cm Model ST (Standard) Vent 0 % Additional information Item Detail Top spars 3 wrap SLE UL - 31" Vert spars 3 wrap UL - 31" Weight 283 gr Rebuild Leading edge has been completely changed (dacron and gauze)

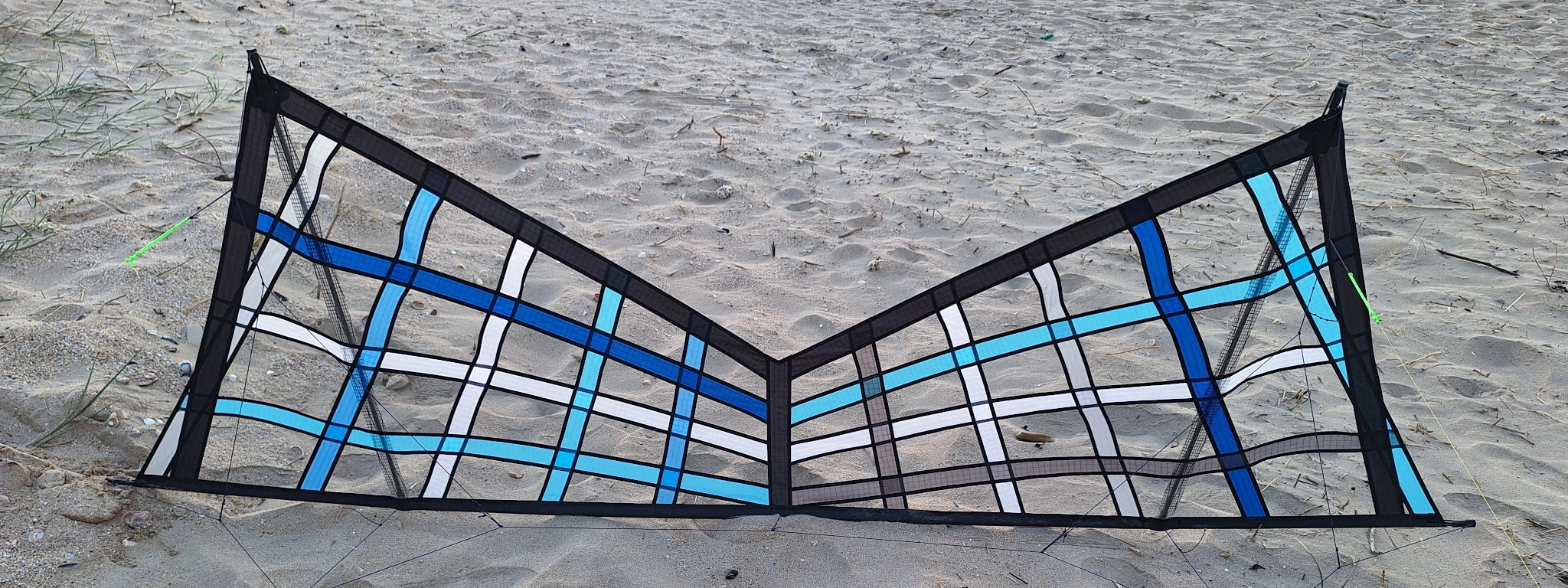

gfak #6: eXtra-Vented rev 1.5
Ready to fly (RTF) Characteristics Name gfak #6 Plan GFAK Revo 1.5 WingSpan 94" - 238 cm Model XT (Extra Vented) Venting 39,5 % Fabric PC-31 Icarex polyester Colors Blue, grey, black ans white Build date 1/8/2025 Frame Spars Reference Length Top Nijora tokala 200 31" Verticals Revolution EXP 3 wrap 31" Wind Range mph km/h knots Min 15,5 25 13,5 Max 24,9 40 21,6

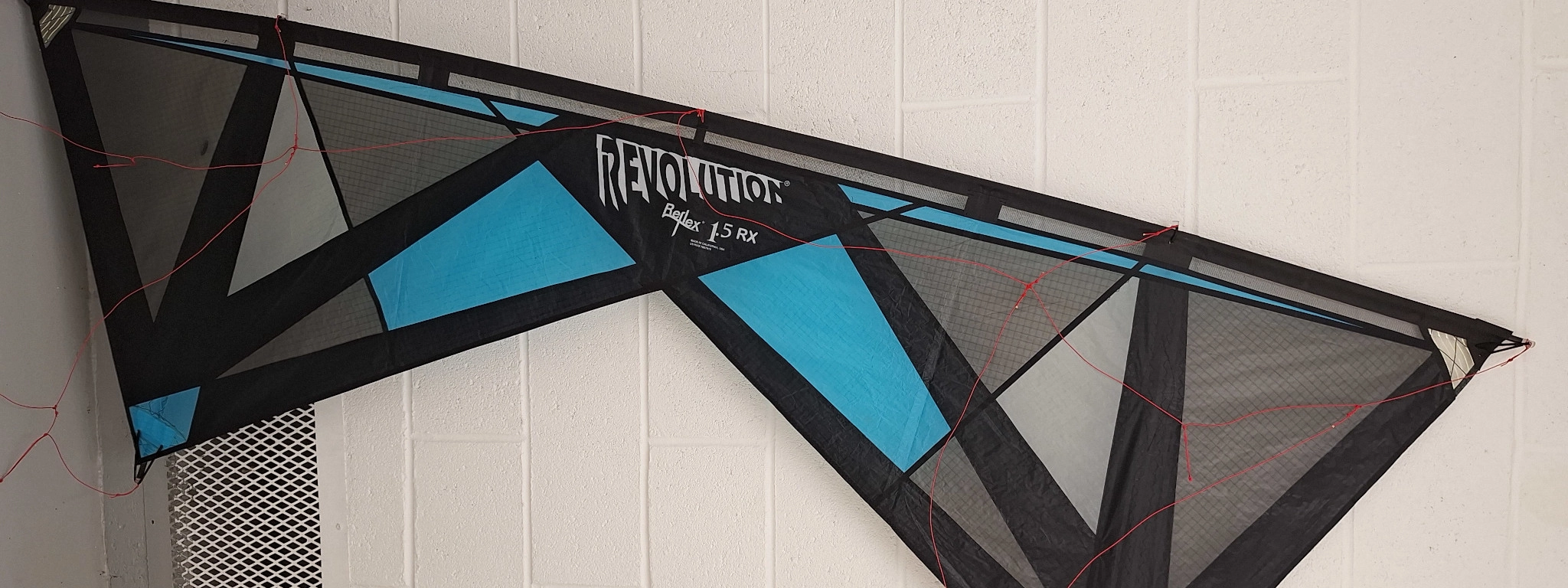

revolution RX
Bought to test: 5/16"\ rods and reflex springs and to improve some details Characteristics Name RX Plan Revolution Revo 1.5 WingSpan 94" - 238 cm Model ST (Standard) Additional information Item Detail Top spars Reflex RX - 31" Vert spars Reflex RX- 31" Weight 254 gr Improvements Center reinforcement Leading edge reinforcement Trailing edge All trailing edges are now double stitched ...

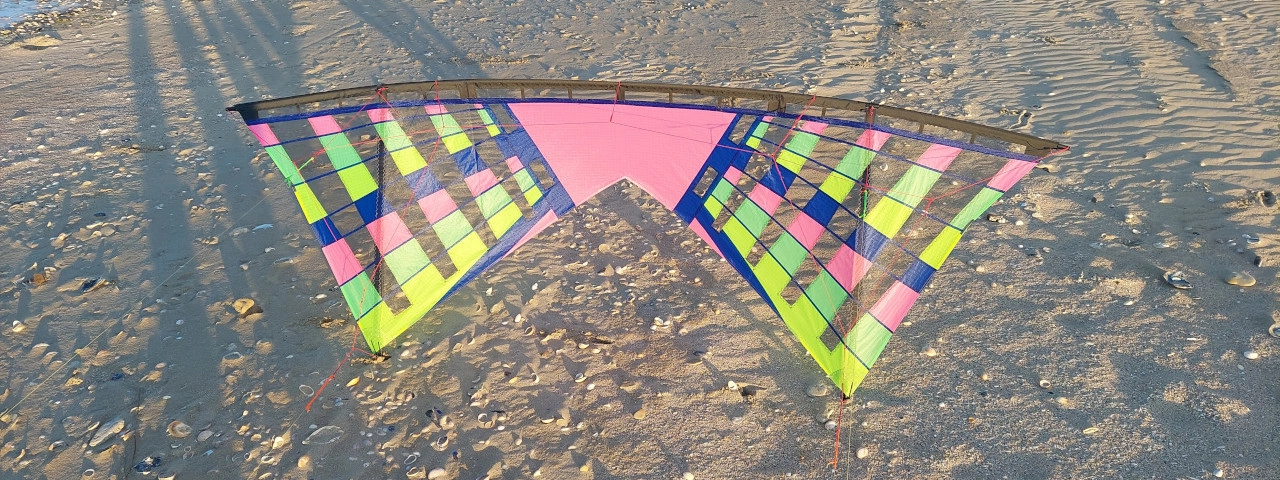

gfak #5: VenTed rev 1.5
Characteristics Name gfak #5 Revo 1.5 WingSpan 94" - 238 cm Model VT (Vented) Venting 30 % Fabric PC-31 Icarex polyester Colors Midnight blue, fluor green/pink/yellow Build date 2/4/2024 Frame Spars Reference Length Top SkyShark P3X 31" Verticals SkyShark P3X 31" Wind Range mph km/h knots Min 12,4 20 10,8 Max 21,7 35 18,9

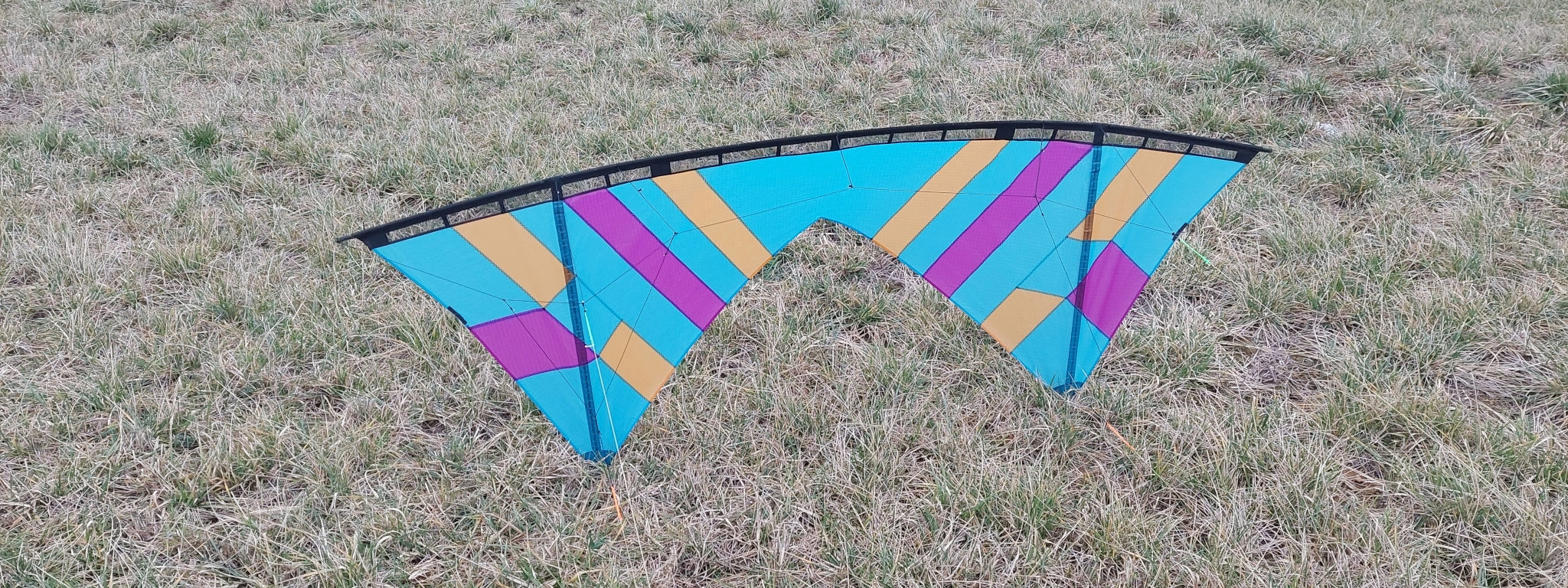

gfak #4: STandard rev 1.5
Characteristics Name gfak #4 Revo 1.5 WingSpan 94" - 238 cm Model ST (Standard) Venting 0 % Fabric PC-31 Icarex polyester Colors Sky blue, gold, purple Build date 11/4/2023 Frame Spars Reference Length Top SkyShark P100 31" Verticals SkyShark P100 31" Wind Range mph km/h knots Min 3,1 5 2,7 Max 11,8 19 10,3

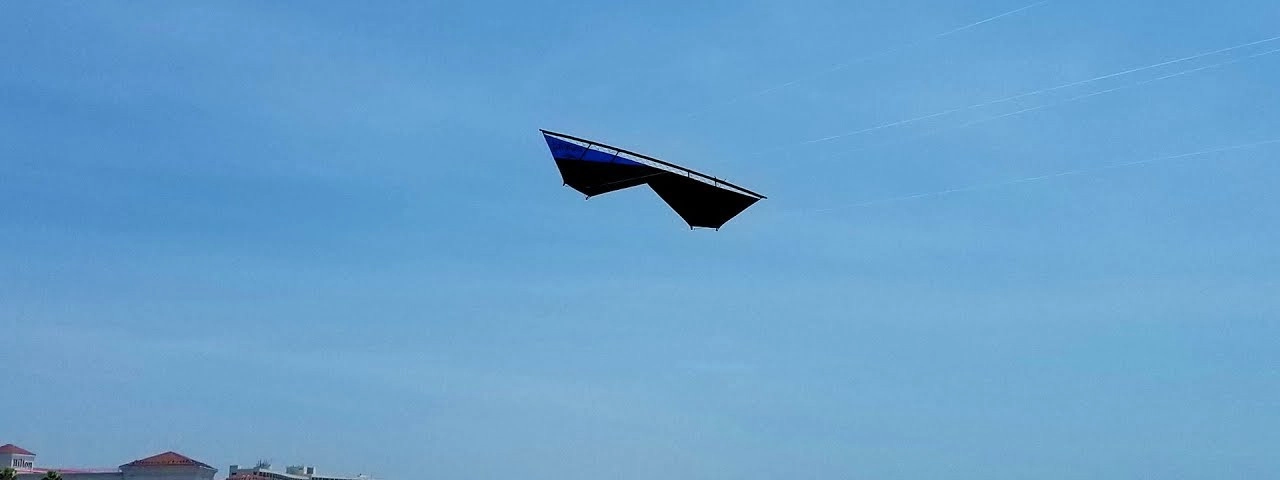

revolution Supersonic
Bought for speed and fun. A kite as powerful as it is fast Characteristics Name Supersonic Plan Revolution Revo 1.44 WingSpan 94.5" - 240 cm Model ST (Standard) Vent 0 % Additional information Item Detail Top spars Revolution 1 - 31,5" Vert spars Revolution 3 wrap Weight 299 gr

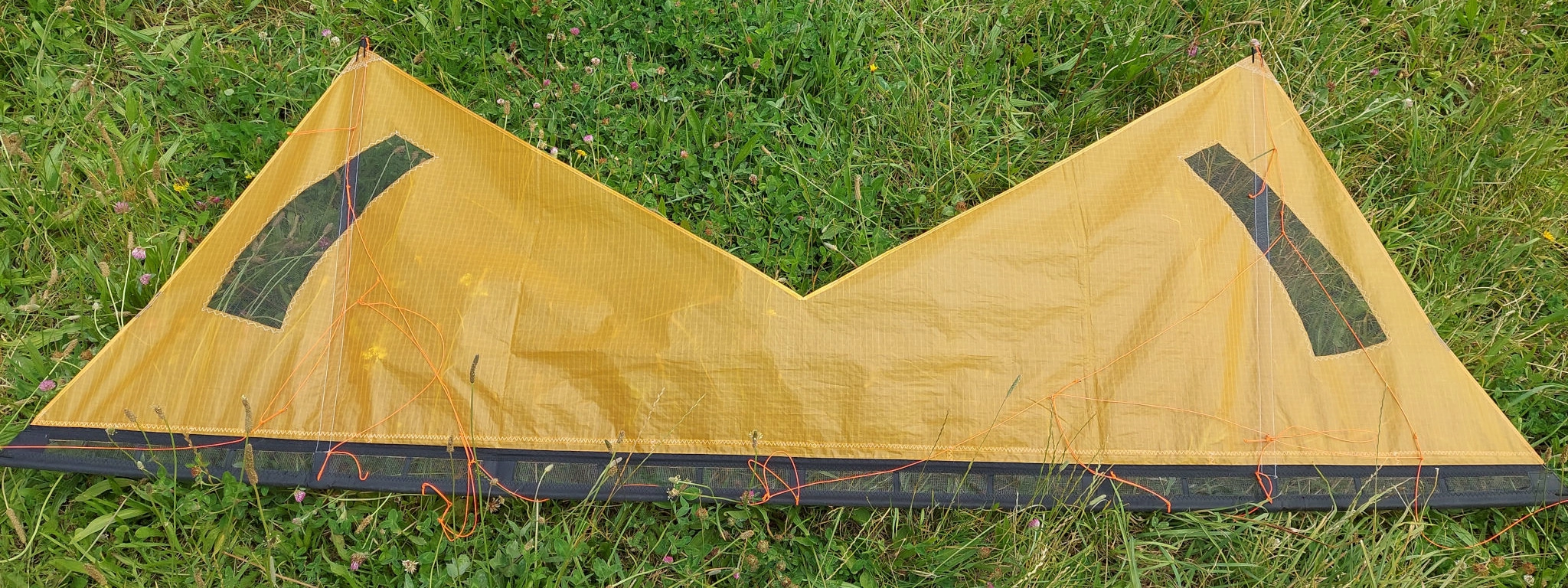

gfak #3: Mid-Vented rev 1.5
Characteristics Name gfak #3 Revo 1.5 WingSpan 94" - 238 cm Model MV (Mid Vented) Venting 8 % Fabric PC-31 Icarex polyester Colors Gold, black Build date 2-28-2023 Frame Spars Reference Length Top SkyShark P200 31" Verticals Easton PowerFlight 500 31" Weight Item Sail gr Frame gr Total gr Wind Range mph km/h knots Min 5,6 9 4,9 Max 14,3 23 12,4

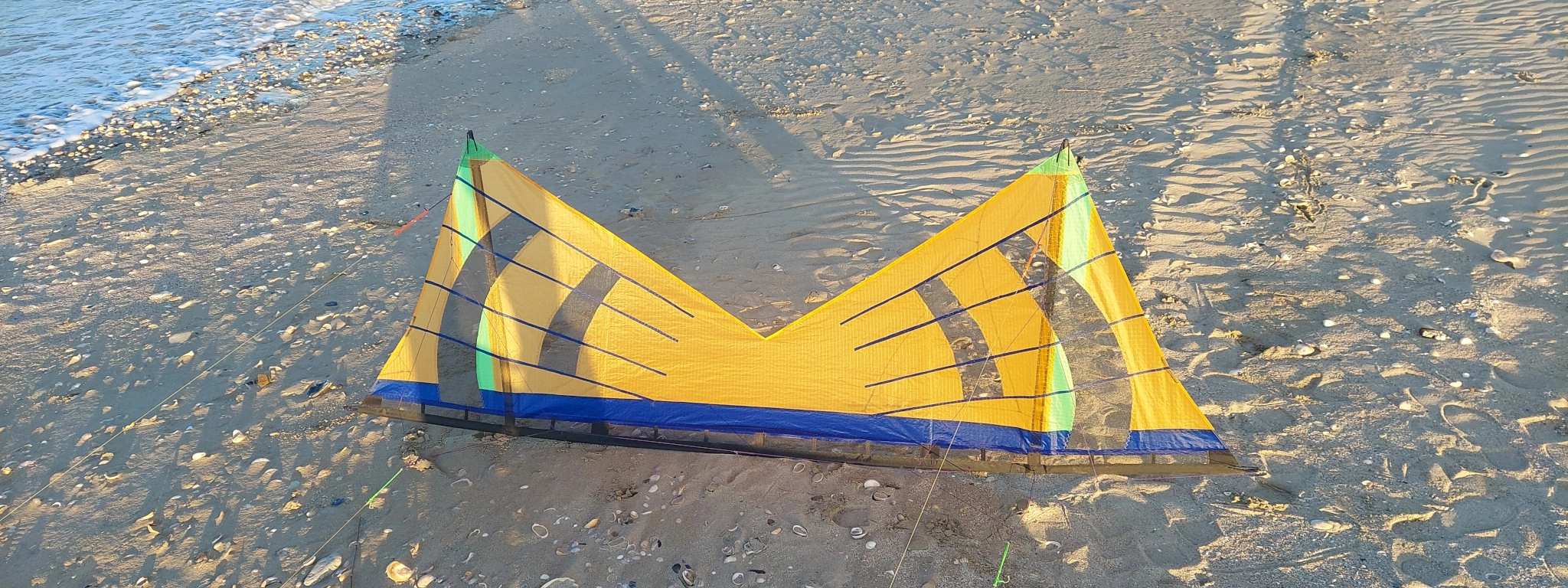

gfak #2: Mid-Vented rev 1.5
Characteristics Name gfak #2 Revo 1.5 WingSpan 94" - 238 cm Model MV (Mid Vented) Venting 18 % Fabric PC-31 Icarex polyester Colors Gold, midnight blue, fluor green Build date 1-31-2023 Frame Spars Reference Length Top SkyShark P2X 31" Verticals SkyShark P2X 31" Wind Range mph km/h knots Min 8,1 13 7 Max 17,4 28 15,1

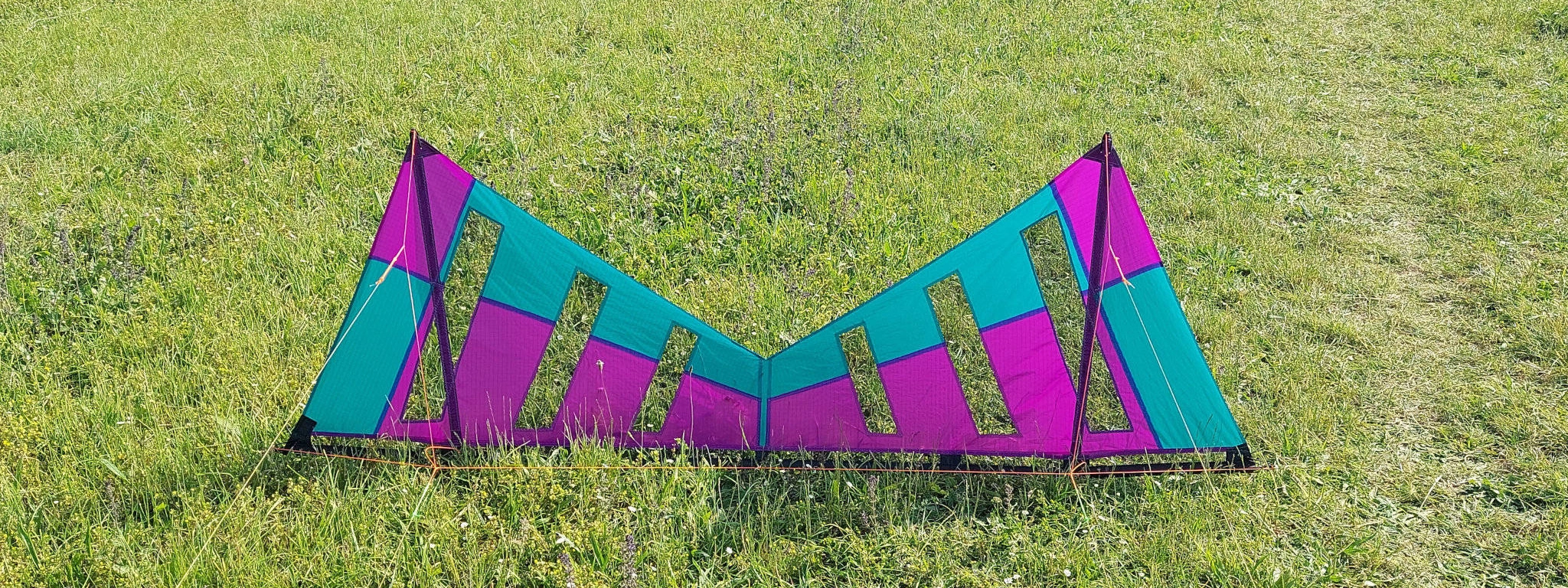

gfak #1: VenTed rev 1.5
Characteristics Name gfak #1 Plan Essentials by Watty Revo 1.5 WingSpan 94" - 238 cm Model VT (VenTed) Venting 26 % Fabric PC-31 Icarex polyester Colors Purple, teal Build date 12-19-2022 Frame Spars Reference Length Top SkyShark P300 31" Verticals SkyShark P300 31" Wind Range mph km/h knots Min 10,6 17 9 Max 16,8 27 15
